60 Ton side board trailer uses advanced submerged arc welding technology to produce trailers, and there is no welding interface between the middle plate, bottom plate and upper plate of the main beam.
The main beam of 60 Ton side board trailer is made of Q345 high-strength steel, which has stronger load-bearing capacity and a service life of more than 10 years.

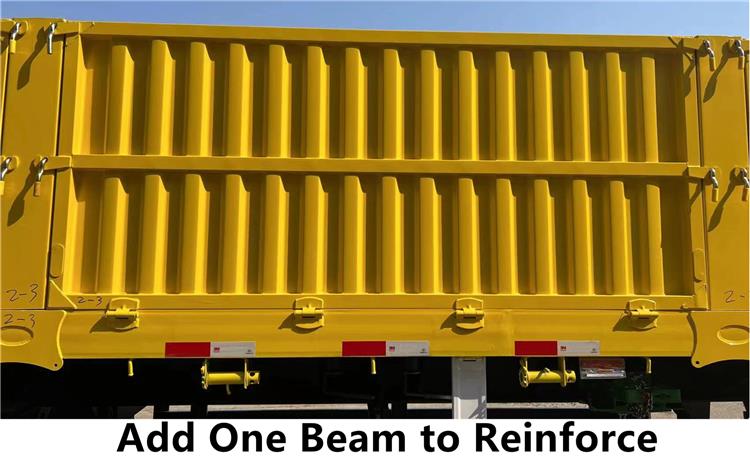

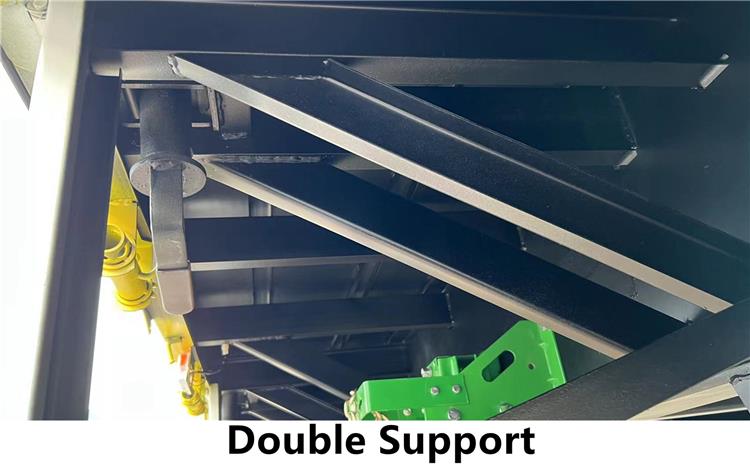

The main beam of 60 Ton side board trailer is reinforced, and the gooseneck position, middle plate and bottom plate of the main beam are reinforced with double-layer plates. Even if heavy objects are loaded, the deformation of the main beam is small.

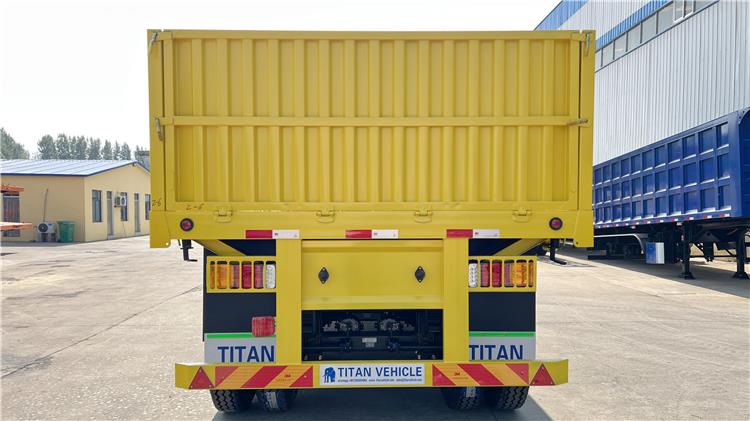

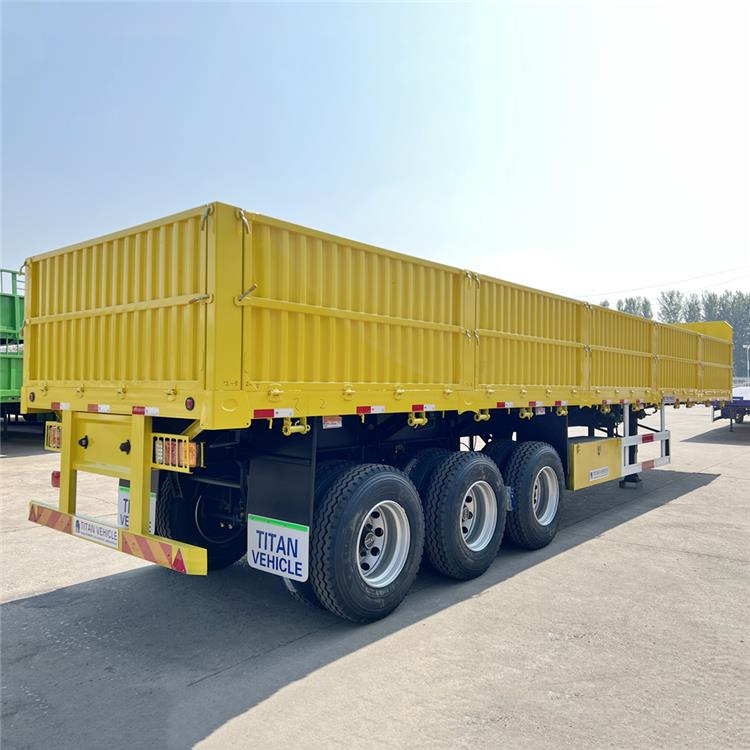

60 Ton Side Board Trailer with 1200mm for Sale In Zambia
60 Ton Side Board Trailer with 1200mm for Sale In Zambia
60 Ton Side Board Trailer with 1200mm for Sale In Zambia
60 Ton Side Board Trailer with 1200mm for Sale In Zambia
60 Ton Side Board Trailer with 1200mm for Sale In Zambia
60 Ton Side Board Trailer with 1200mm for Sale In Zambia

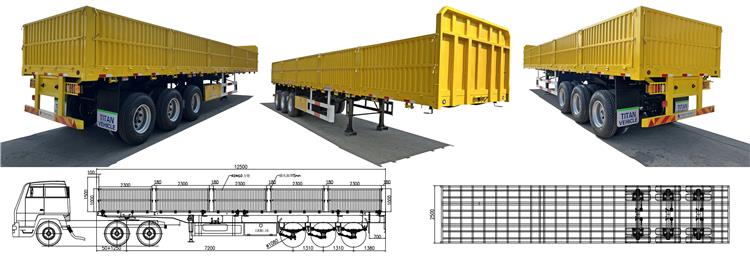

Dimension(mm): 12500x2800x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T,TITAN Brand
Tire: 12 units, 12.00R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension
King Pin: JOST brand
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
