The curtainsider trailer for sale in Zambia features a reinforced main beam constructed from Q345 high-strength steel, with an optimized cross-section: a 500mm-high central plate (8mm thick), topped by a 14mm upper plate and supported by a 16mm bottom plate. This robust configuration is engineered to maximize structural integrity and extend the trailer’s service life significantly.
The goose neck section of the main beam of the curtainsider trailer for sale in Zambia features a double-column reinforcement structure, specifically engineered to enhance stability during heavy-load transport. This design effectively prevents main beam fractures under full-load conditions while maintaining optimal bearing capacity and extending service life, even on rough road surfaces.
Curtainsider Trailer for Sale in Zambia
Curtainsider Trailer for Sale in Zambia
Curtainsider Trailer for Sale in Zambia
Curtainsider Trailer for Sale in Zambia
Size: 13750 x 2500 x 4000 mm
Load capacity: 60 tons
Side: reinforced PVC waterproof curtains
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12R22.5 tire
Suspension: Mechanical suspension

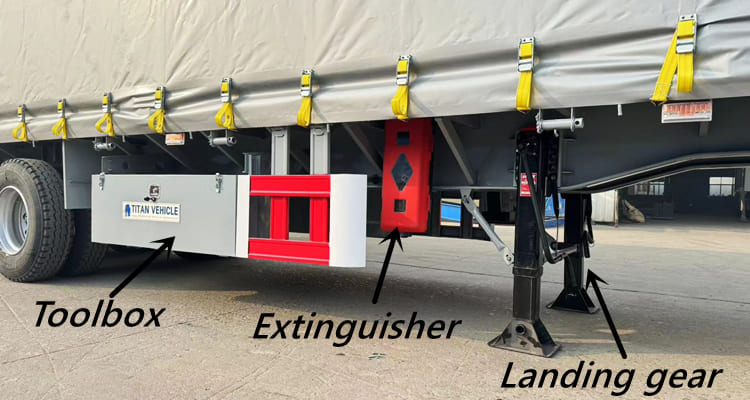

Landing Gear: JOST brand
Light: LED lights
By adopting a reinforced, thickened beam structure, the TITAN 3 axle curtainsider trailer for sale in Zambia is built to resist damage on rugged roads—especially when fully loaded. This design is optimized for the demanding conditions of African transport routes, where 90% of our customers are based, ensuring reliability in harsh environments. A 160 mm high side beam design is critical to the TITAN 3 axle curtainsider trailer for sale in Zambia’s structural integrity—reinforced to shoulder part of the main beam’s load during heavy transport. This design not only boosts stability and durability but also reinforces anti-deformation performance, directly lowering accident risks on the road.
The structural stability of the TITAN 3-axle curtainsider trailer (Zambia model) is reinforced by closely spaced (50cm) inclined brackets on each crossbeam, which are engineered to optimize load distribution efficiency across the frame. All cross beams are custom-built with China-specific thickened designs, reducing their thickness or longitudinal beam count (a theoretical $400 saving) would inevitably lead to structural failure.

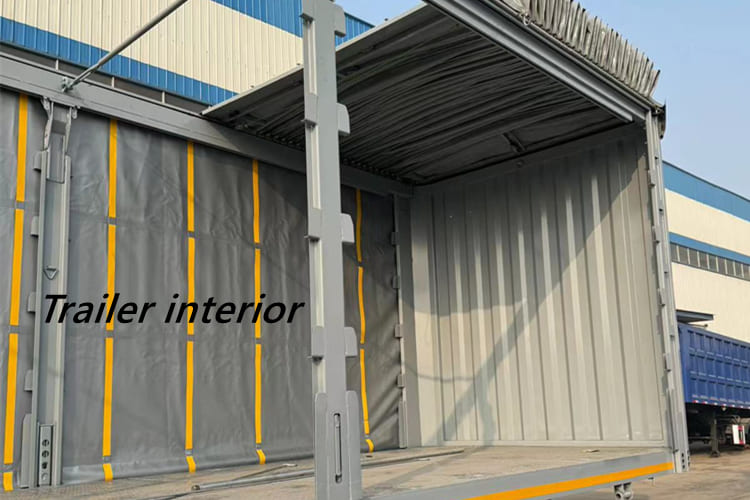

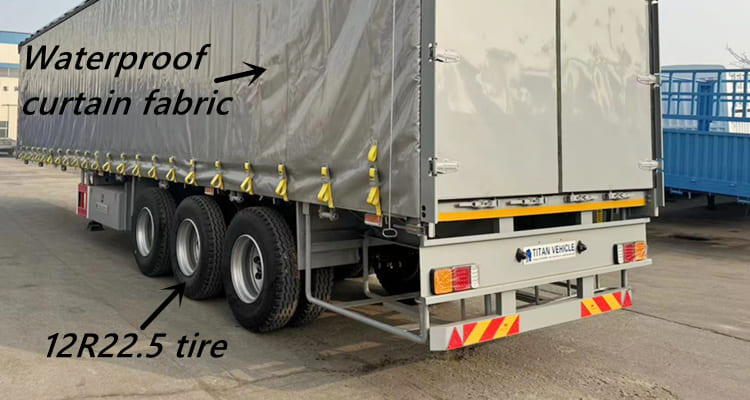

The TITAN 3 axle curtainsider trailer for sale in Zambia’s side curtain cloth is made of high-density PVC material, and the surface is treated with special coating (such as anti-aging layer, anti-permeable membrane), which can completely block rainwater, snow water and humid air infiltration , ensuring that the goods remain dry in rainy transportation or humid environment (such as port loading and unloading, coastal transportation).
The reinforced structure design of the side curtain cloth significantly improves its durability. Through the multi-layer composite process, the tear and puncture resistance of the curtain cloth is enhanced. Compared with the ordinary PVC curtain cloth, it can withstand a higher frequency of opening and closing friction, cargo collision, and external sharp scratches. Both sides of the curtain are fixed by a slide rail or a hook, supporting single side/bilateral quick roll-up or unfold. There is no need to completely disassemble when loading and unloading goods, which greatly improves the operation efficiency (especially suitable for logistics scenes with frequent loading and unloading).
For a curtainsider trailer, reinforced PVC waterproof curtains address the pain points of traditional tarps—such as water leakage, easy damage, and cumbersome operation—through multi-dimensional advantages: waterproof, reinforced, durable, and flexible operation. These curtains are particularly suitable for high-humidity transportation environments, frequent loading/unloading operations, and multi-climate working conditions. Their comprehensive performance not only ensures cargo safety but also reduces long-term maintenance costs, making them an optimal solution to enhance logistics efficiency and reliability.

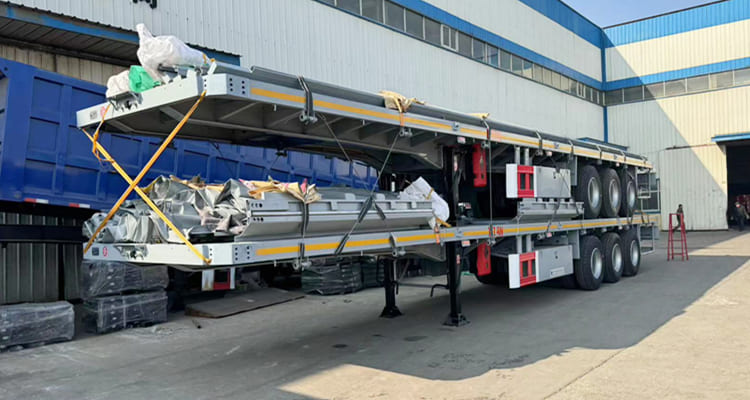

TITAN curtainsider trailer delivery service ensures safe and punctual vehicle arrival through flexible transportation solutions and professional logistics management. Serving Saudi Arabia and other global regions, we provide "port-to-port" options. Available transportation modes include: Full Container Load (FCL) (suitable for standard models with strong protection and fast customs clearance), Flat Rack (Flat Rack) (compatible with ultra-wide/ultra-long customized models), Ro-Ro (Rolling Load) (cost-effective and suitable for wheeled standard models).
