Howo 430 tractor head cab is more convenient in terms of space size, sleeper width, seat comfort, storage, etc., and various practical and comfortable configurations are readily available.
Howo truck new model - howo 430 tractor head is the latest tractor head series developed by Howo. The howo 430 tractor head adopts advanced technology and has more horsepower and less fuel consumption than howo 420 series.

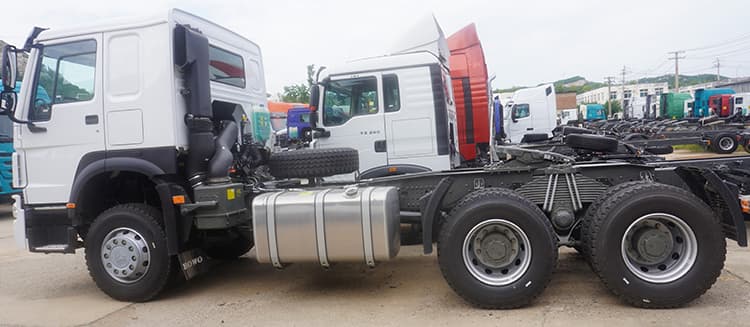

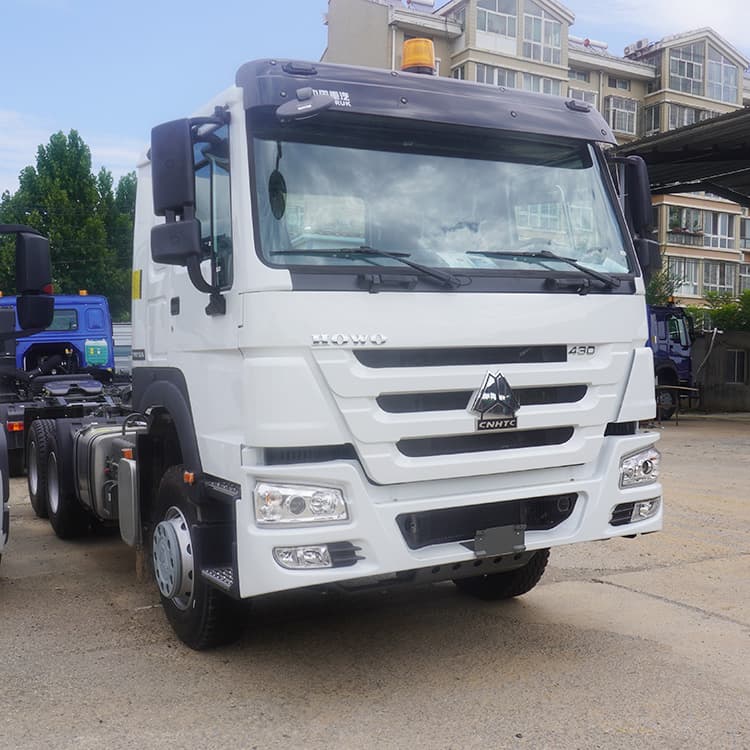

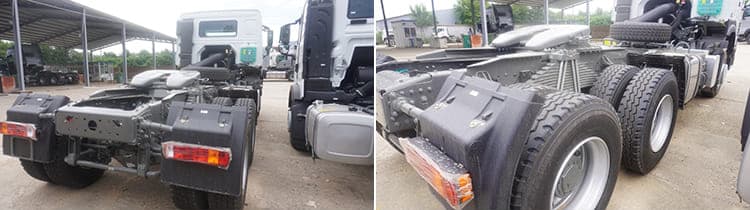

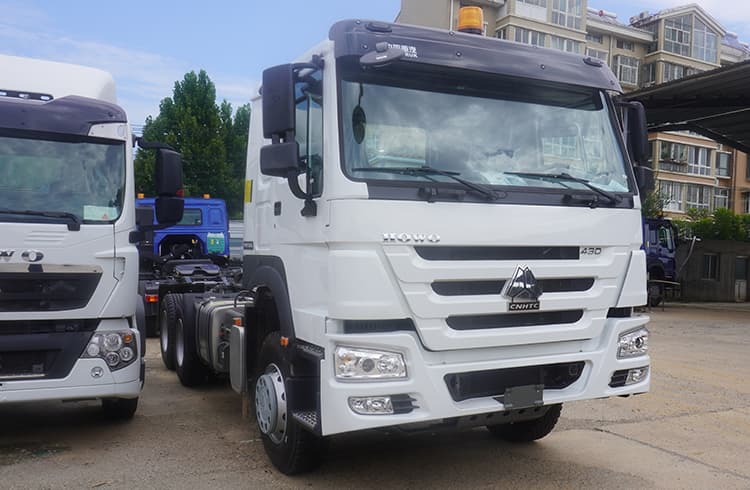

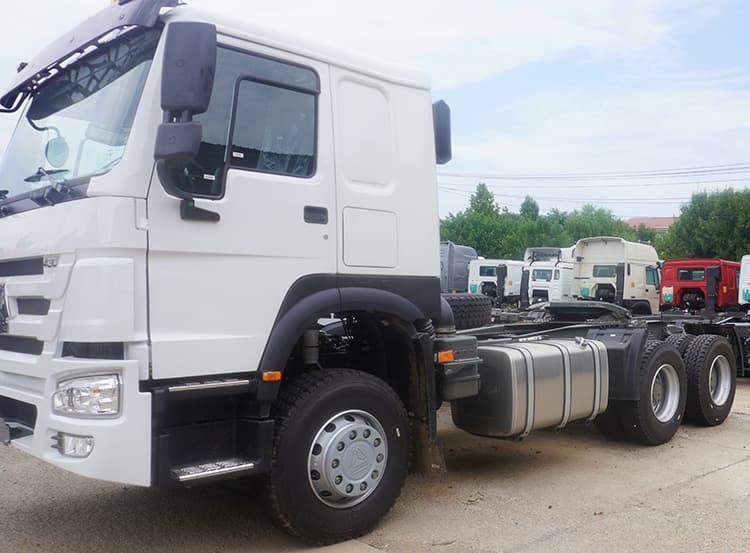

Howo Truck New Model | Sinotruk Howo 430 Tractor Head for Sale
Howo Truck New Model | Sinotruk Howo 430 Tractor Head for Sale
Howo Truck New Model | Sinotruk Howo 430 Tractor Head for Sale
Howo Truck New Model | Sinotruk Howo 430 Tractor Head for Sale
Engine:
Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system
Maximum output: 430PS (309kW) at 2000 rpm
Maximum torque: 1820Nm at 1100-1400rpm
Bore: 126mm
Stroke: 155mm
Displacement: 11.596L
Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission:
Transmission, model HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle: New HF9 series, with drum brake system
Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering: ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Wheels&Tyres:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab: Long cab, all-steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, warming light
Dimensions inmm:
Wheel base (mm): 3200+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/725
Approach angle(°):16
Departure angle(°):70
Overall Dimension (mm): 6800x2496x2958
Weight in kg:
Rated loading capacity at fifth wheel (kg):15660
Dead weight (kg):9210
Gross vehicle weight (kg):25000
Gross combination weight（kg）：7000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
Performance Maximum driving speed(km/h):102(reference data)
Maximum gradeability (%):33
Minimum ground clearance(mm):265
Minimum turning radius (m):18.5
Fuel consumption(L/100km):40(reference data)
SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.
Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.
SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.
SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
